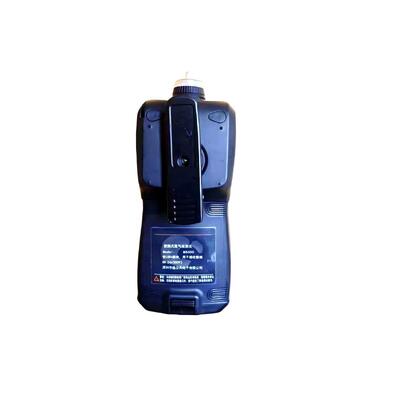

Zetron MS500 Multi Gas Detector – Real-time Monitoring for CO, H2S, LEL, O2 with High Precision and Fast Response
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 製品名 | 携帯用ガス分析器 | モデル番号 | MS500 |
|---|---|---|---|
| ガスユニット | PPM、mg/m3、Vol%、LEL%、PPHMのppb、mg/l。 | タイプ | 携帯用多ガス探知器、赤外線 |
| 保証 | 12ヶ月 | 色 | 黒 |
| 保護レベル | IP66 | カスタマイズされたサポート | OEM、ODM、OBM |
| 重さ | 350g | サイズ | 180*78*33mm |
製品の説明
MS500 Portable Gas Detector
OVERVIEW
MS500 is designed for critical industrial environments, offering a next-generation solution for real-time gas detection. It is equipped with advanced imported sensors, capable of simultaneously monitoring up to five gases, including flammable, toxic, and oxygen gases. This makes it ideal for rapid detection in demanding conditions, ensuring the safety of personnel and production processes.
PARAMETERS
|
Measuring gas
|
CO/H2S/LEL/O2
|
|
Measuring range
|
0-1000,2000,5000ppm
Other ranges can be customized
|
|
Resolution
|
0.1 ppm
1 ppm
Other ranges can be customized
|
|
Sensor type
|
Other Sensor: Infrared, Electrochemical, catalytic combustion, thermal conductivity, PID photoionization, and so on.
Other Sensor can be customized
|
|
Measuring type
|
Built-in pump-suction type
|
|
Response time
|
T90<20s
|
|
Display
|
2.5-inch high-definition color screen
|
|
Alarm method
|
sound & light + vibration alarm;turning off the alarm
|
|
Battery
|
DC3.7V, 3000mA high capacity rechargeable polymer battery
|
|
Data storage
|
Standard capacity is 100,000 entries.
|
|
Working temperature
|
-40 ℃ ~ + 70 ℃
|
|
Working humidity
|
0 ~ 95% RH
|
|
Housing
|
Rubber enclosure
|
|
Standard accessories
|
Manual, qualification certificate, warranty card, USB charger (including the data cable), high-grade aluminum instrument case,
belt clip, humidity dust filter |
|
Dimension (L×W×H)
|
180×78×33mm
|
|
Weight
|
350g
|
|
Ex grade
|
Ex ia IIC T4 Ga Intrinsically safe type
|
|
Ingress protection
|
IP66
|
PARAMETERS
Massive Storage & Multi-Port Integration:
Standard configuration supports storage of 100,000 data entries, with options for real-time and fixed-time storage. USB and RS232 interfaces make data export easy for analysis and archiving.
Multi-Mode Stereoscopic Alarm:
Includes sound & light, vibration, visual, concentration, under-voltage, and failure alarms, with customizable settings like low and high alarms, interval alarms, and weighted average alarms. This provides multi-directional safety indications.
Seven-Fold Protection for Harsh Environments:
With IP65 water and dust resistance, explosion-proof features, shock-proof, anti-static, and electromagnetic immunity, the MS500 ensures reliable operation in the most challenging industrial settings.
Pump-Suction High-Efficiency Sampling:
The pump-suction sampling system, equipped with a built-in water vapor/dust filter, ensures accuracy. Additionally, Bluetooth connectivity allows for wireless printing of reports on-site.
APPLICATION
MS500 Intelligent Pump-Suction Multi-Gas Analyzer is designed for a wide range of industrial applications where safety and rapid detection are critical. It excels in energy, chemical, and manufacturing sectors for leak detection and hazardous gas monitoring during pipeline inspections, steel smelting, and non-ferrous metal processing. The device is also indispensable in medical, environmental, and confined space operations, offering precise gas measurements in pharmaceuticals, sewage treatment, and emergency response scenarios. With its robust construction and real-time, multi-gas detection capabilities, the MS500 ensures personnel safety and operational efficiency across various high-risk environments.
