MIC500S Online 0-30%VOL O2 Oxygen Gas Detector PH3 HCL HCN COCL2 Gas Leak Alarm
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 製品名 | MIC500S | 関数 | ガス漏れと濃度を測定する |
|---|---|---|---|
| ガスの検出 | 燃料ガス/H2S/CO/O2/H2S/H2/VOC | 出力信号 | 4-20mA RS485 ハート リレー |
| カスタマイズされたサポート | OEM、ODM、OBM | 重さ | 2.5kg |
| 保護のクラス | IP65/IP66/IP67 | 湿度 | 0-95%RH （露無し） |
| 検出モード | 拡散式/パイプライン式/ポンプ式吸着 | 電源 | 12-30V |
| アラームタイプ | 音＋光アラーム | 画面 | LCDディスプレイ |
| 使用法 | 工業生産 | サンプリング方法 | 拡散,内部ポンプ,固定 |
| サイズ | 230*152*90mm | ||
| ハイライト | MIC500S industrial gas detector,fixed gas detector with LCD display,12-30V gas detector for safety |
||
製品の説明
MIC500S Online 0-30%VOL O2 Oxygen Gas Detector PH3 HCL HCN COCL2 Gas Leak Alarm
Professional-grade gas detection system with LCD display for continuous monitoring of over 500 gas types. Ideal for industrial safety applications.
Key Features
- Powerful and Convenient Humanized Function
- Multiple alarm modes, and multi-directional and three-dimensional indication alarm states
- Includes: 2 sets of relay switch output, sound & light alarm (optional configuration), and display screen visual alarm
- Alarm types include: concentration alarm, and failure alarm
- Multiple alarm mode settings: low alarm, high alarm, interval alarm, and weighted average alarm
- Zero-point automatic tracking; long-term use will not be affected by the zero drift
- Multi-level calibration for target points, can ensure the linearity and accuracy of the measurements
- Log recording: Record the calibration logs, repair logs, failure history, failure countermeasure solutions, sensor service life due reminder, and function of reminder for the time of next concentration calibration
- Data recovery function; in case of mis-operation, it is possible to select partial or full recovery
- Mis-operation recognition function: automatic recognition and prevention of the concentration calibration mis-operation, which is possible to avoid the poor performance that may be caused by human factors

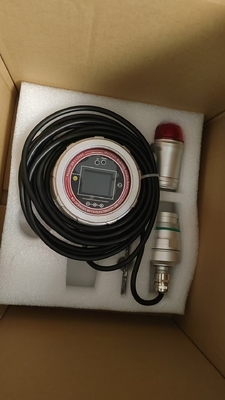

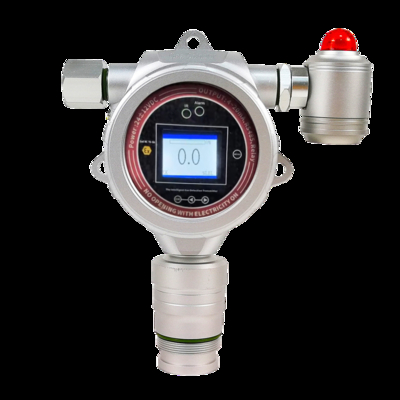

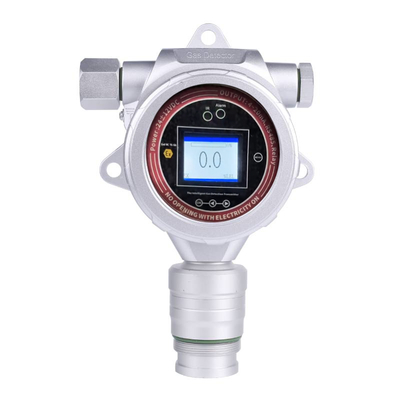

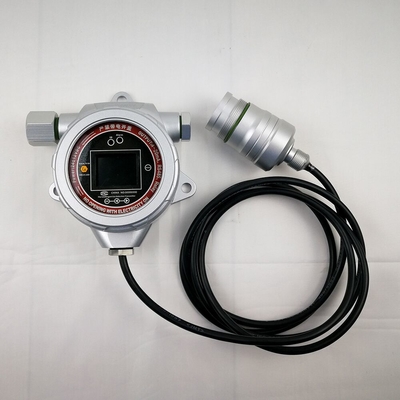

Product Images
Technical Specifications
| Detection Gas | EX, Toxic gases, oxygen, carbon dioxide, flammable and explosive gases, TVOC, etc. |
|---|---|
| Range | 0~1, 10, 100, 1000, 5000, 50000 ppm (mg/m³); 0~100% LEL; 0~200 mg/L; 0~20%, 50%, 100% VOL; Custom ranges available |
| Dimensions | 210*170*85mm (L*H*W) |
| Weight | 1.8 Kg |
| Installation | Pipeline Type or Wall Mounting |
| Display | 1.7-inch high-definition color screen |
| Environment | Temperature: -40℃ ~ +70℃ Humidity: ≤10 ~ 95% RH (regular) |
| Approvals | IP65; Exd Ⅱ CT6 |
| Power Supply | 12-30VDC (standard 24V), DC stabilized voltage switching power supply of 1A or greater |
| Accessories | Manual, qualification certificate, warranty card, outer packaging box |
| Optional Items | Alarms, Wireless Transmission, Pretreatment System, SD Card, Temperature/Humidity Measurement, Computer monitoring accessories |
Applications
